Introduction

Industrial environments are rarely silent. Engines, machinery, metal panels, vehicle components, pumps and mechanical systems can all generate unwanted airborne and impact noise. When these sounds travel through lightweight surfaces, simply adding conventional insulation may not provide the level of control required. This is where acoustic barriers can become an important part of a practical noise-control system.

Modern barrier materials are designed to increase sound insulation by adding mass between the noise source and the surrounding environment. They can also contribute to vibration control, particularly when used in combination with suitable acoustic foams or other damping materials. Because different industries have different operating conditions, selecting suitable Barrier products requires consideration of more than thickness alone.

What Are Acoustic Barriers?

Acoustic barriers are flexible sound-insulating materials developed to reduce the transmission of airborne sound through panels, enclosures and other structures. Rather than simply absorbing sound inside a room, a barrier works primarily by making it more difficult for sound energy to pass through a surface.

This distinction is important. Sound absorption and sound insulation solve related but different problems. Absorptive materials can reduce reflected sound within a space, while a dense acoustic barrier can help limit sound transmission through a partition or panel.

Many barrier products are flexible enough to be installed against existing surfaces. This makes them useful when a manufacturer needs to improve the acoustic performance of a panel without completely redesigning the original component.

Why Flexible Barrier Materials Matter

Industrial components are not always perfectly flat. Vehicle interiors, machinery covers, engine compartments and fabricated panels can contain curves, corners and irregular sections.

A rigid acoustic material may therefore be difficult to install effectively. Flexible acoustic barriers can follow slightly curved or uneven surfaces, helping manufacturers achieve more consistent coverage.

Some products can be supplied as standard sheets, while others can be converted into specific shapes using processes such as die cutting or water-jet cutting. This allows a barrier to be produced around a component rather than forcing the component to accommodate a generic insulation panel.

For manufacturers working with repeat production, this type of customization can also make installation more efficient.

Polymeric Acoustic Barriers for Lightweight Panels

Lightweight construction materials can present an acoustic challenge. Metal, plywood, plastic and hollow-core panels may be structurally useful while still allowing considerable sound transmission.

Polymeric barriers such as low-density vinyl membranes can be used to improve the sound insulation characteristics of these surfaces. Materials in this category are designed to add acoustic mass without requiring an excessively rigid construction.

A barrier installed in close contact with the original panel can help address resonance-related problems that may occur in lightweight structures. This makes polymeric solutions particularly relevant to applications where the existing panel needs acoustic improvement rather than complete replacement.

They can be considered for machinery covers, fabricated enclosures, vehicle components, furniture panels and other lightweight structures where controlling transmitted noise is important.

PE-Faced Bitumen Barrier Products

Another category consists of bitumen-based acoustic barriers with a polyethylene-facing layer. These materials can be useful when a project requires a dense sound-insulating layer combined with a practical surface for installation.

The polyethylene face can help contain the underlying material and provide a cleaner working surface. Self-adhesive versions can also simplify attachment to suitable substrates.

Depending on the specification, these products may be selected for flat-panel sound insulation, vibration-related applications and composite constructions.

The ability to bond the barrier to another material can be particularly useful when designing multilayer acoustic systems. Instead of relying on one material to perform every function, manufacturers can combine different layers to address sound transmission, absorption and vibration.

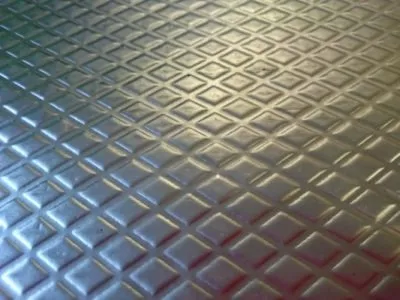

Aluminium-Faced Barriers for Heat-Exposed Areas

Acoustic requirements sometimes exist alongside thermal challenges. An engine compartment, agricultural machine or marine application may experience elevated temperatures while also producing substantial mechanical noise.

For these environments, aluminium-faced acoustic barriers can provide a useful combination of properties. The aluminium surface offers protection where the material may encounter heat, while the dense underlying barrier helps provide sound-damping performance.

These types of Barrier products can be considered for engine compartments, construction equipment, agricultural vehicles and marine applications where both acoustic and environmental conditions need to be considered.

The correct specification should always depend on the operating temperature, installation environment, available space and required acoustic performance.

Where Can Acoustic Barriers Be Used?

The versatility of flexible barrier materials makes them relevant to numerous industries.

Automotive Applications

Cars and commercial vehicles contain multiple sources of unwanted noise, including engines, mechanical systems, road interaction and vibration. Barrier materials can be incorporated into selected panels and compartments to reduce sound transmission.

Agricultural and Earth-Moving Equipment

Tractors, excavators and other heavy machinery can generate significant engine and mechanical noise. Acoustic barriers can form part of an enclosure or cabin treatment designed to improve the working environment.

Home Appliances

Washing machines, refrigerators and other appliances contain motors, compressors and moving components that can generate unwanted noise and vibration. Barrier materials can be incorporated into selected panels where space and weight requirements permit.

Lifts and Metal Furniture

Lift cabins and fabricated metal structures can benefit from acoustic treatment because thin metal panels can readily transmit mechanical noise. Flexible barriers can be adapted to suit available surfaces.

Pipes and Mechanical Systems

Acoustic treatment can also be considered around pipework and mechanical installations where transmitted or radiated noise is an issue. The appropriate solution depends on temperature, access, geometry and the type of noise being controlled.

Combining Barriers With Acoustic Foam

A barrier does not necessarily need to work alone. One of the most effective approaches to acoustic design can involve combining different materials, with each layer performing a particular function.

A dense barrier can help reduce sound transmission, while acoustic foam can help absorb sound energy within an enclosure or cavity. Combining the two can create a laminated acoustic construction designed around a specific application.

For example, a manufacturer may require a material that reduces sound passing through a machine panel while also controlling reflections inside the enclosure. A barrier-and-foam laminate can address these requirements within one engineered component.

This approach is especially useful when there is limited installation space.

The Importance of Custom Conversion

Industrial acoustic work rarely follows a one-size-fits-all model. Components may need unusual dimensions, apertures, curves or mounting points.

Foam and barrier materials can therefore be converted through processes including slitting, die cutting, CNC profiling, laminating and water-jet cutting. These techniques allow standard material to become a component designed around a particular product.

Custom conversion can also help reduce installation time. Instead of cutting and adapting material manually during assembly, manufacturers can receive components manufactured to predetermined dimensions.

Benefits of Acoustic Barriers

The main advantages of properly specified acoustic barriers include:

• Reduced sound transmission: Dense barrier layers can make it more difficult for airborne noise to pass through panels.

• Flexible installation: Many products can follow slightly curved or uneven surfaces.

• Vibration control: Certain barrier constructions can contribute to damping unwanted vibration and impact noise.

• Custom shapes: Die cutting, CNC processing and water-jet cutting allow components to match specific designs.

• Compatibility with foam: Barriers can be combined with acoustic foam to create multilayer solutions.

• Wide industrial use: Applications range from vehicles and appliances to machinery and fabricated structures.

• Material options: Polymeric, bitumen-based and aluminium-faced constructions provide different performance characteristics.

Conclusion

Effective industrial noise control begins with understanding how unwanted sound is travelling through a product or structure. Acoustic barriers are particularly useful when sound transmission through lightweight panels, covers or enclosures is part of the problem.

From polymeric membranes for lightweight panels to PE-faced and aluminium-faced barrier materials, different constructions can be selected according to the environment and application. Flexible sheets can also be converted into custom components, making them suitable for curved and complex surfaces.

For demanding applications, combining Barrier products with acoustic foam can provide a more complete approach by addressing both sound transmission and sound absorption. With appropriate material selection and conversion, acoustic treatment can become an integrated part of product design rather than an afterthought.
